SportsArt Status Senza Upright Cycle-16 inch C576U-16

SportsArt’s Status Senza Upright Cycle-16"

The SENZA™ Status line encompasses our top tier cardio products, integrated with premium technology and entertainment options that actively engages users by providing an intuitive workout experience that allows them to consume their entertainment, their way.

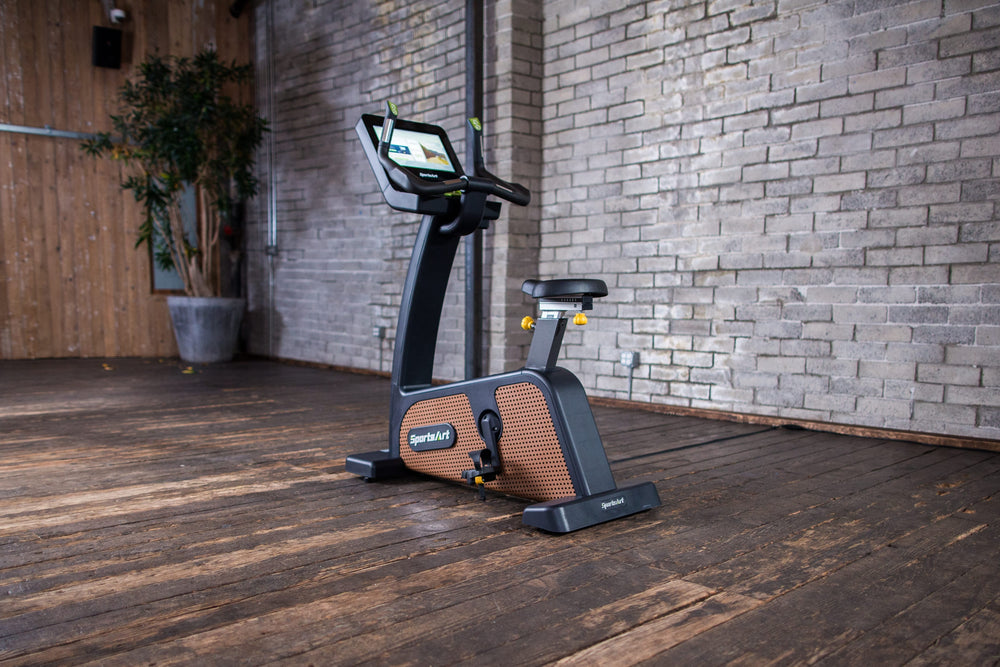

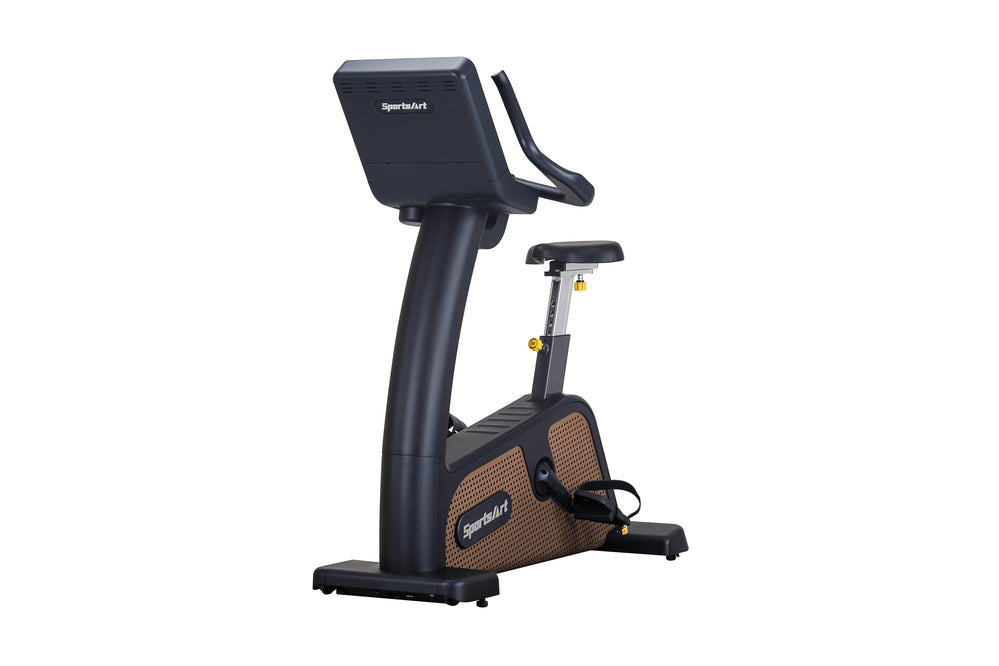

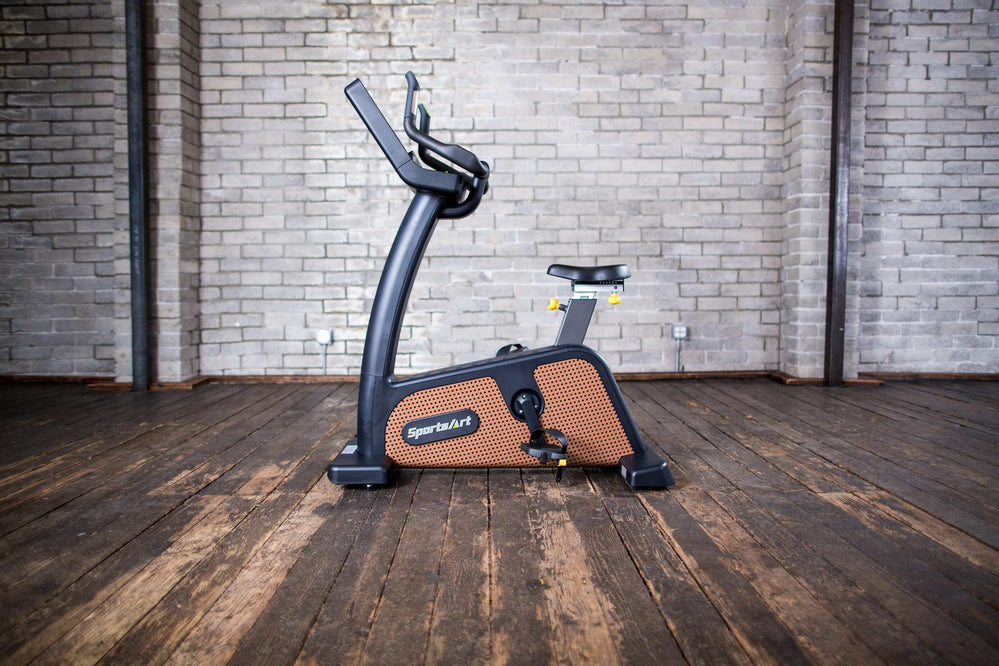

The C576U-16″ Upright Cycle features a low-profile shroud design for ease-of-access, vertically and horizontally adjustable seat, and multiple resistance adjustment points with fingertip, toggle, and touchscreen controls on a 16-inch SENZA™ display.

Features

• 16-inch SENZA™ Touchscreen
• ANYCast screen mirroring technology
• Horizontal and vertical seat adjustment
• SA Well+™ Integration
• Fingertip and toggle controls for easy resistance adjustment

Tech Specs

• Console toggles and fingertip controls for easy resistance adjustment
• Multi-point seat adjustment
• 3 Speed fan

Specifications

• Unit Weight:  222.2 lbs / 101 kg
• Dimensions (L x W x H):  49.6 x 26.9 x 58.7 in / 126 x 68.5 x 149.1 cm
• Resistance:  40 levels
• Power Requirements:  120V / 60Hz*

• Plug Requirements:  NEMA 5-15* | Contact your sales rep for specific requirements
• Max User Weight:  500 lbs / 227.3 kg

Touchscreen Features

• Bluetooth 4.0 heart rate support
• Bluetooth-AVRCP iOS & Android music compatible
• Customizable home screen logo, embedded url on home screen, screen saver images & web pages
• 13 SENZA™ Journeys

Touchscreen Specifications

• Screen:  TFT Backlit LED Capacitive Touchscreen w/ Anti-Glare
• Resolution:  1366 x 768
• Screen Size:  16 in
• Aspect Ratio:  16:9
• Operating System:  Android 5.1.1
• Contrast ratio: 500:1
• Processor:  NXP Freescale I.MX6 Quad Core, 1GHz
• Memory:  32GB eMMC
• Languages:   English, Traditional Chinese, Simplified Chinese, Japanese, German
• System Updates:  Manual USB or Push (via Wi-fi opt-in)
• Brightness: 15 Adjustable Settings (300 cd/m2)
• Viewing Angle: 160° Vertical & Horizontal
• Connectivity:  Wi-fi (IEEE 802.11 a/b/g/n) | LAN Ethernet (10/100Mbps)
• Web Browsing:  Closed browser, owner/operator determines web page availability
• TV Support:  ATSC / QAM(64,256) / NTSC | DVBT / PAL / SECAM
• Inputs:  AV (CVBS) | Coax
• Readouts:  Resistance, Stride length, Time, Heart rate, Distance, Calories, Strides per minute
• Workout Programs:  Manual, Random, SENZA™ Journey, Interval, Plateau, Fat Burn, Track, Fitness Test, Heart Rate

Warranty

• Type:  Full Commercial - no usage limit
• Frame:  Lifetime**
• Parts:  5 Years

• Wear Items:  5 Years
• Labor:  3 Years

• High Wear Items:  90 days, no labor
• SENZA™ Touchscreen:  2 Years

Resources

Data Sheet
