How many people can use the BodyKore MTI4016 at once?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The MTI4016 is designed as a five-station system and can support multiple users training at the same time, depending on the exercises being performed and facility supervision."}]}]}

What exercises can be performed on the MTI4016?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The system supports chest presses, leg extensions, leg presses, cable flyes, rows, pulldowns, arm exercises, shoulder exercises, core movements, functional exercises, and lower-body cable training."}]}]}

How many weight stacks are included?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The MTI4016 includes five selectorized weight stacks."}]}]}

How much resistance is included?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Each included weight stack weighs 220 pounds, providing 1,100 pounds of total installed stack weight across the complete machine."}]}]}

Can the weight stacks be upgraded?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Yes. Each 220-pound weight stack can be upgraded to 340 pounds with the compatible BodyKore 340-U weight stack upgrade."}]}]}

How much floor space does the machine occupy?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The equipment itself occupies approximately "},{"type":"text","value":"162 square feet","bold":true},{"type":"text","value":". A total training area of approximately "},{"type":"text","value":"300–360 square feet","bold":true},{"type":"text","value":" is recommended to provide access and circulation space."}]}]}

How tall is the machine?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The MTI4016 is 89.5 inches tall, or approximately 7 feet 5.5 inches. Ceiling clearance and installation access should be confirmed before ordering."}]}]}

Is the MTI4016 intended for commercial use?

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Yes. It is built with an 11-gauge steel frame, industrial-grade cables, commercial upholstery, sealed bearings, and components intended for high-use fitness environments."}]}]}

Do you offer free shipping?

Yes, free shipping on all orders. Larger items ship via freight to your curb. Inside delivery and installation available for an additional fee, call/text (646) 657-8856 or chat with us.

Is assembly or installation included?

Most equipment requires basic assembly, instructions and hardware included. Professional installation available for an additional fee. For a quote, call/text (646) 657-8856 with your zip code, room location, and stair count.

What is your return policy?

30-day returns on all equipment in unopened, original packaging. Restocking fees may apply. Contact us before returning: (646) 657-8856 or email - we're here to help!

What if my order arrives damaged?

All items are insured during shipping. If your equipment arrives damaged, text photos or call us immediately at (646) 657-8856. We'll arrange a replacement or repair at no cost.

What warranty is included?

All equipment includes manufacturer warranty. Check product specifications for details, or contact us at (646) 657-8856.

Do you offer financing?

Yes, flexible payment plans available. Apply at checkout to see your options.

Can I use my HSA/FSA to purchase gym equipment?

Yes, many products are HSA/FSA eligible with a letter of medical necessity from your healthcare provider. Select Trumed to generate one at checkout.

Call for Best Pricing on BodyKore

Call (646) 657-8856 Send a Text

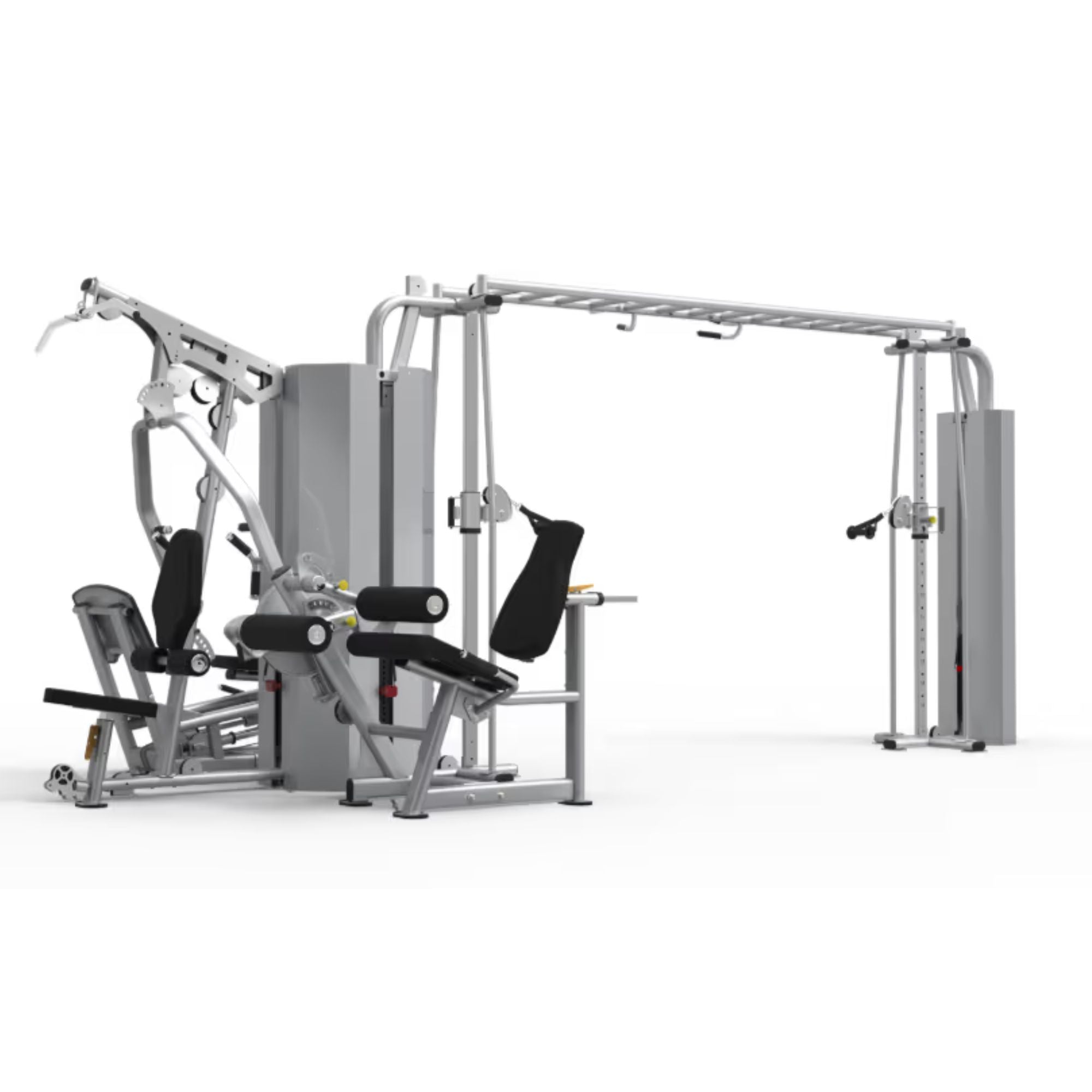

A BodyKore multi-functional gym cable machine and leg extension combo with a silver steel frame and black padded seats, shown on a solid white background.

BodyKore 5 Station- Chest, Leg Ext, Leg Press, Cable Cross MTI4016

by BodyKore

Save 8%

$14,399.00

$13,200.00 + Free Shipping

Quantity

Order By

Calculating...

Preparing Order

Calculating...

Est. Delivery

Calculating...

Free Shipping

Ships fast with appointment by freight delivery

Shipping & Tracking Info →

Trusted by Home & Commercial Gyms

[See how people are upgrading their spaces]

Best Price Online Guaranteed

No markups. No games. Just the best price.

Questions before you buy?

Text or call us — we’ll help you figure it out quickly.

646-857-8856

Competitors Outlet LLC BBB Business Review

BodyKore MTI4016 5-Station Gym for High-Capacity Full-Body Training

The BodyKore MTI4016 5-Station Gym gives commercial facilities a space-efficient way to serve multiple users with upper-body, lower-body, and cable-based strength training in one integrated system.

The layout combines dedicated chest, leg extension, and leg press stations with a dual-sided cable crossover area. Each station is biomechanically positioned to support natural movement, targeted muscle engagement, and comfortable access for users of different sizes and experience levels.

Built for demanding training environments, the MTI4016 features an 11-gauge steel frame, five 220-pound weight stacks, sealed pivot bearings, industrial-grade galvanized cables, commercial upholstery, and a durable electrostatic powder-coated finish. Multiple users can train at the same time without requiring a separate footprint for five individual strength machines.

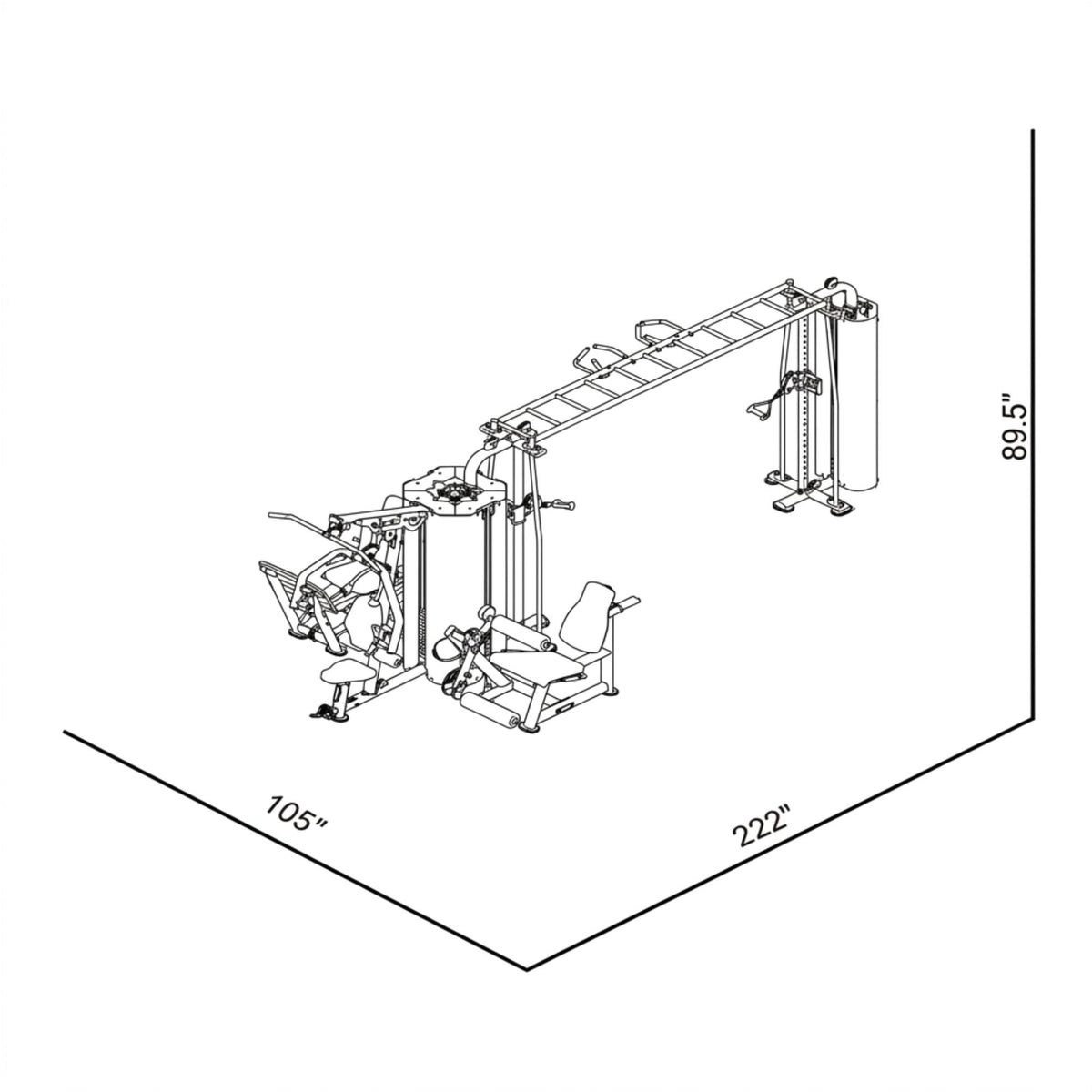

Black and white line drawing of a large home gym equipment set with dimension labels showing 105 inches, 222 inches, and 89.5 inches.

Includes:

One BodyKore MTI4016 five-station main unit
Chest training station
Leg extension station
Leg press station
Dual-sided cable crossover training area
Five 220 lb selectorized weight stacks
Weight-stack selector pin
Instructional exercise placards
Non-slip foot platforms
Integrated adjustment mechanisms
Hardware pack
Assembly instructions
BodyKore MTI4016 instruction and installation manual

Best for: commercial gyms, schools and universities, apartment fitness centers, hotels, recreation centers, corporate wellness facilities, athletic performance centers, municipal fitness facilities, and other high-use environments that need multiple strength stations in one coordinated system.

Features

Five-station commercial strength-training system
Supports multiple users across dedicated training positions
Chest training station for upper-body pressing movements
Leg extension station for isolated quadriceps training
Leg press station for compound lower-body strength development
Dual cable crossover positions for functional and isolation exercises
Smooth cable-and-pulley system provides fluid, consistent resistance
Biomechanically optimized station placement supports natural movement
Multiple adjustment points accommodate different body types
Independent weight stacks allow users to select their own resistance
Non-slip foot platforms improve stability during lower-body exercises
Safety stops help support controlled operation
Water-resistant commercial upholstery
High-density foam padding provides support during repeated use
Sealed bearings installed at pivot points
Anti-slip grips and rubber footing
Space-efficient multi-user configuration
Weight stacks can be upgraded from 220 pounds to 340 pounds each

Construction

Frame Material: 11-gauge commercial steel
Frame Finish: Electrostatic powder coat
Available Frame Colors: Matte Black, Charcoal, Platinum, Snow White, and Fire Engine Red
Upholstery: Water-resistant commercial-grade vinyl
Padding: High-density foam
Cable Construction: Industrial galvanized steel
Cable Diameter: 4.8 mm
Cable Breaking Strength: 12,000 N
Cable Protection: Heat- and corrosion-resistant
Hardware: Stainless steel fasteners
Bearings: Sealed at pivot points
Floor Contact: Rubber footing

Specs

Product Type: Commercial five-station gym
Number of Stations: 5
Training Functions: Chest training, leg extension, leg press, and cable crossover
Included Weight Stacks: Five
Weight per Stack: 220 lb
Total Installed Stack Weight: 1,100 lb
Optional Weight Stack Capacity: Up to 340 lb per stack
Maximum Total Stack Weight with Upgrades: 1,700 lb
Dimensions: 222″ W × 105″ D × 89.5″ H
Approximate Dimensions in Feet: 18.5′ W × 8.75′ D × 7.46′ H
Machine Weight: 1,550 lb
Equipment Footprint: Approximately 162 sq. ft.
Recommended Training Area: Approximately 300–360 sq. ft.
Professional Assembly: Strongly recommended due to the machine’s size and weight

Training Stations

Chest Training Station

Provides guided pressing resistance for developing the chest, shoulders, and triceps.

Primary Muscles: Pectorals, anterior deltoids, and triceps
Training Emphasis: Controlled upper-body pressing strength

Leg Extension Station

Provides isolated knee-extension training for strengthening the quadriceps.

Primary Muscles: Quadriceps
Training Emphasis: Lower-body isolation, knee-extension strength, and quadriceps development

Leg Press Station

Provides supported compound lower-body training through a stable pressing movement.

Primary Muscles: Quadriceps, glutes, and hamstrings
Training Emphasis: Lower-body strength, leg drive, and compound pressing

Cable Crossover Stations

The dual cable positions support a wide range of upper-body, lower-body, core, and functional training exercises.

Primary Muscles: Chest, shoulders, back, arms, glutes, legs, and core, depending on the selected exercise
Training Emphasis: Functional training, unilateral exercise, isolation movements, sports performance, and full-body cable training

BodyKore Warranty

Frame / Weight Stacks: 10 years
Pulleys: 10 years
Pivot bearings: 10 years
Other items not specified: 3 years
Upholstery, cables, springs, and grips: 1 year
Accessories: 6 months

Resources

BodyKore 5-Station Chest, Leg Extension, Leg Press and Cable Crossover Gym MTI4016 Manual

BodyKore Warranty

Frequently Asked Questions

The MTI4016 is designed as a five-station system and can support multiple users training at the same time, depending on the exercises being performed and facility supervision.
The system supports chest presses, leg extensions, leg presses, cable flyes, rows, pulldowns, arm exercises, shoulder exercises, core movements, functional exercises, and lower-body cable training.
The MTI4016 includes five selectorized weight stacks.
Each included weight stack weighs 220 pounds, providing 1,100 pounds of total installed stack weight across the complete machine.
Yes. Each 220-pound weight stack can be upgraded to 340 pounds with the compatible BodyKore 340-U weight stack upgrade.
The equipment itself occupies approximately 162 square feet. A total training area of approximately 300–360 square feet is recommended to provide access and circulation space.
The MTI4016 is 89.5 inches tall, or approximately 7 feet 5.5 inches. Ceiling clearance and installation access should be confirmed before ordering.
Yes. It is built with an 11-gauge steel frame, industrial-grade cables, commercial upholstery, sealed bearings, and components intended for high-use fitness environments.
Yes, free shipping on all orders. Larger items ship via freight to your curb. Inside delivery and installation available for an additional fee, call/text (646) 657-8856 or chat with us.
Most equipment requires basic assembly, instructions and hardware included. Professional installation available for an additional fee. For a quote, call/text (646) 657-8856 with your zip code, room location, and stair count.
30-day returns on all equipment in unopened, original packaging. Restocking fees may apply. Contact us before returning: (646) 657-8856 or email - we're here to help!
All items are insured during shipping. If your equipment arrives damaged, text photos or call us immediately at (646) 657-8856. We'll arrange a replacement or repair at no cost.
All equipment includes manufacturer warranty. Check product specifications for details, or contact us at (646) 657-8856.
Yes, flexible payment plans available. Apply at checkout to see your options.
Yes, many products are HSA/FSA eligible with a letter of medical necessity from your healthcare provider. Select Trumed to generate one at checkout.
